Piston Fillers for your Liquid Filling Needs

For our clients who offer liquid products and need to fill liquids in rigid containers, Elmar offers custom designed Rotary Piston Filling Systems. Our no nonsense machines can be manufactured to have 6 to 81 stations. All machines come with a one year machine warranty and have a proven history of reliability. Some of our features include:

Temperature Probe
Level Probe
Bowl Cover
Quick Change Nozzles
Bowl Plow
Inverter Drive Systems
“No Tools” Change Parts
Motorized Height Adjustment
Motorized Volume Adjustment
Bottom fill available on select models – consult factory – larger volume available

Leading the way with Parts & Service

Along with a parts department, Elmar offers exceptional service for each machine we custom design & build. Our technical service personnel are here to assist you from setup & installation to maintenance and service of your filler machine.Learn More

Product Gallery

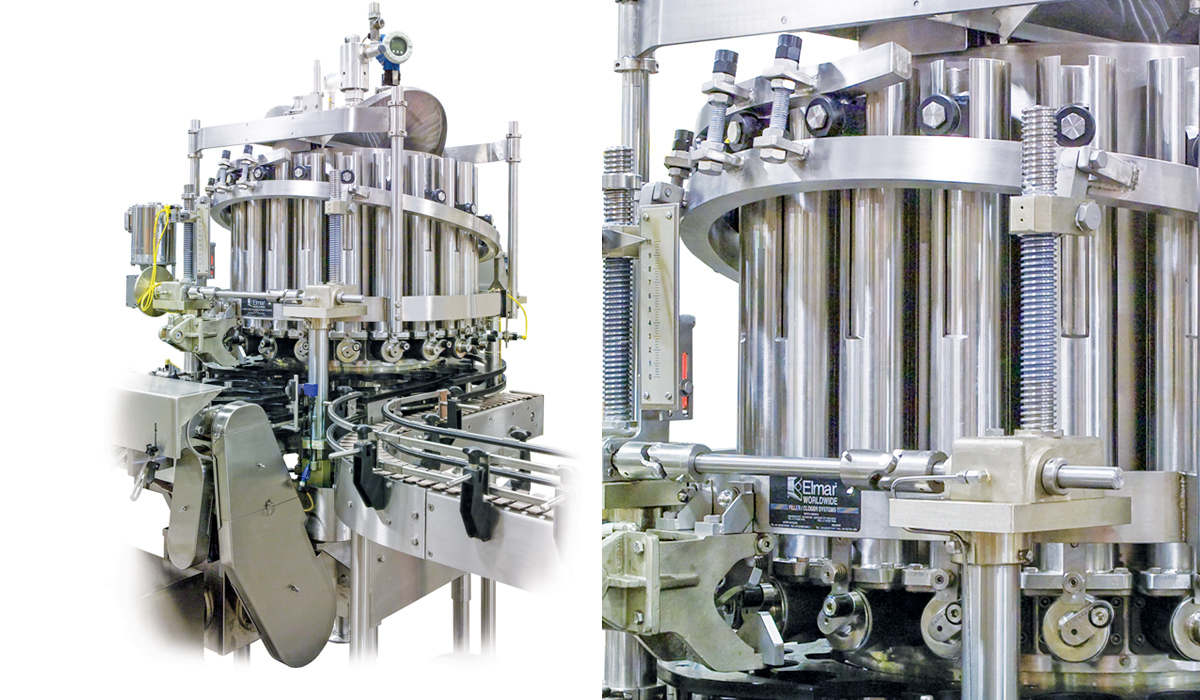

Elmar® World Renowned Piston Fillers

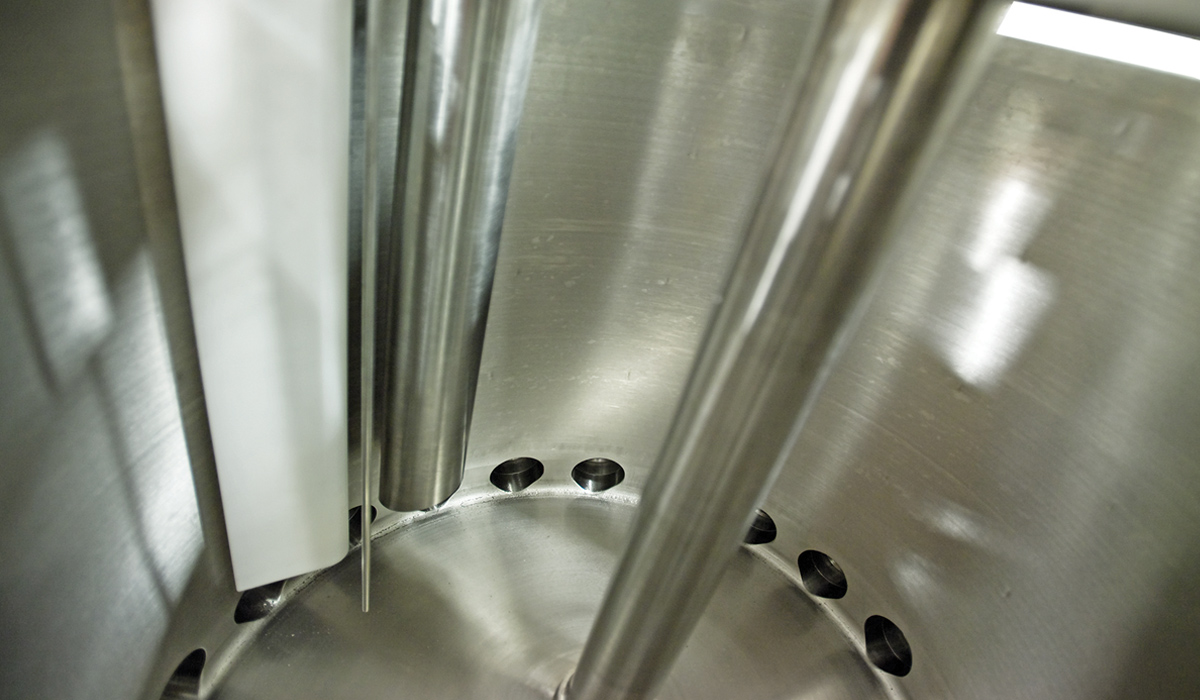

Bowl Plow

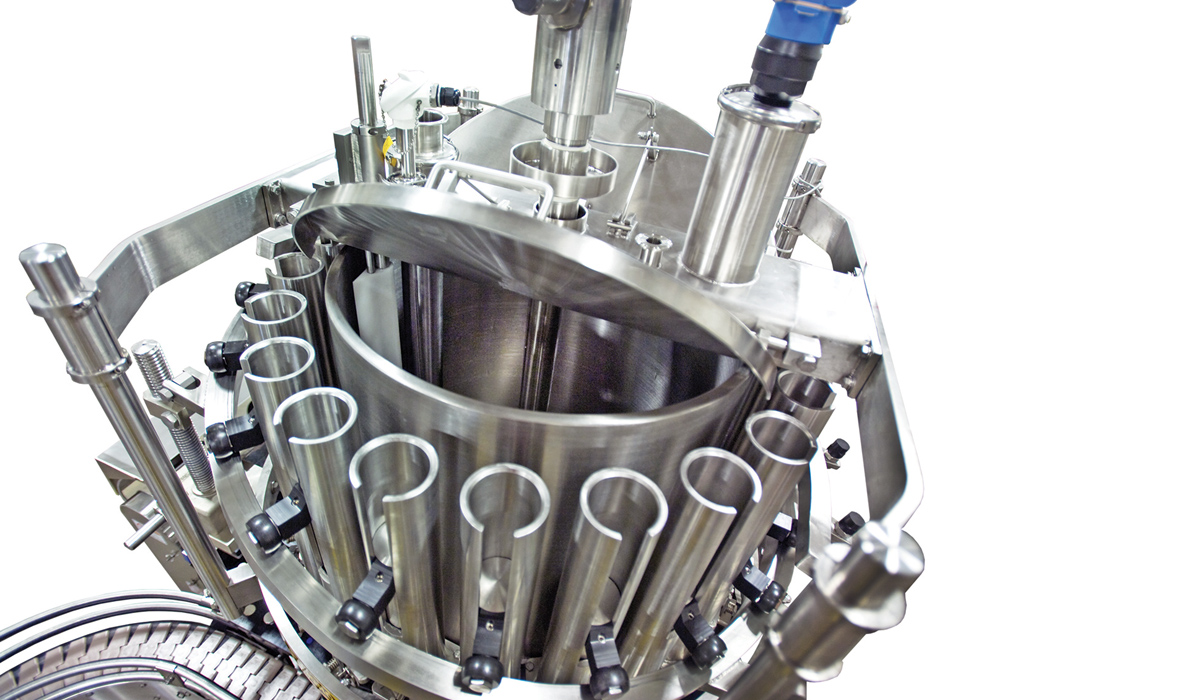

Elmar® Piston Fillers

Piston Filler Specifications

Operational Data	Number of Stations	Container Sizes – Dia.	Max-Fill Range (fl oz)	Filler Bow Capacity (gallons)	Horsepower Required	Aproximate Floor Area (sq ft)	Container Centers (in)
RPE-07	7	2-4.25″	67	25	1.5	21	12.56
RPE-14	14	2-4.25″	67	25	1.5	21	6.28
RPE-21	21	2-4.25″	67	41	2	25	5.25
RPE-28	28	2-4.25″	67	88	3	30	5.132
RPE-35	35	2-4.25″	67	88	3	30	4.110
RPE-36	36	2-4.25″	67	150	3	45	5.235
RPE- 45	45	2-4.25″	67	200	5	50	5.235
RPE-54	54	2-4.25″	27	250	5	50	4.000
RPE-54L	54	2-4.25″	67	250	5	65	4.667
RPE-60	60	2-4.25″	67	250	7.5	125	4.667
RPE-72	72	2-3.5″	27	300	7.5	125	4.000
RPE-7G	7	4-7″	160	25	1.5	21	12.56
RPE-14G	14	4-7″	180	80	3	30	10.265
RPE-18G	18	2-7″	160	208	3	45	10.470
RPE-27G	27	2-4.25″	32-170	230	5	65	9.335
RPE-36G	36	2-4.25″	32-170	250	5	140	8.000

RPE-07
Number of Stations:	7
Container Sizes Diameter:	2-4.25″
Max-Fill Range (Fl. Oz.):	67
Filler Bow Capacity (Gallons):	25
Horsepower Required:	1.5
Aproximate Floor Area (Sq. Ft.):	21
Container Centers (In.):	12.56
RPE-14
Number of Stations:	14
Container Sizes Diameter:	2-4.25″
Max-Fill Range (Fl. Oz.):	67
Filler Bow Capacity (Gallons):	25
Horsepower Required:	1.5
Aproximate Floor Area (Sq. Ft.):	21
Container Centers (In.):	6.28
RPE-21
Number of Stations:	21
Container Sizes Diameter:	2-4.25″
Max-Fill Range (Fl. Oz.):	67
Filler Bow Capacity (Gallons):	41
Horsepower Required:	2
Aproximate Floor Area (Sq. Ft.):	25
Container Centers (In.):	5.25
RPE-28
Number of Stations:	28
Container Sizes Diameter:	2-4.25″
Max-Fill Range (Fl. Oz.):	67
Filler Bow Capacity (Gallons):	88
Horsepower Required:	3
Aproximate Floor Area (Sq. Ft.):	30
Container Centers (In.):	5.132
RPE-35
Number of Stations:	35
Container Sizes Diameter:	2-4.25″
Max-Fill Range (Fl. Oz.):	67
Filler Bow Capacity (Gallons):	88
Horsepower Required:	3
Aproximate Floor Area (Sq. Ft.):	30
Container Centers (In.):	4.110
RPE-36
Number of Stations:	36
Container Sizes Diameter:	2-4.25″
Max-Fill Range (Fl. Oz.):	67
Filler Bow Capacity (Gallons):	150
Horsepower Required:	3
Aproximate Floor Area (Sq. Ft.):	45
Container Centers (In.):	5.235
RPE-45
Number of Stations:	45
Container Sizes Diameter:	2-4.25″
Max-Fill Range (Fl. Oz.):	67
Filler Bow Capacity (Gallons):	200
Horsepower Required:	5
Aproximate Floor Area (Sq. Ft.):	50
Container Centers (In.):	5.235
RPE-54
Number of Stations:	54
Container Sizes Diameter:	2-4.25″
Max-Fill Range (Fl. Oz.):	27
Filler Bow Capacity (Gallons):	250
Horsepower Required:	5
Aproximate Floor Area (Sq. Ft.):	50
Container Centers (In.):	4.000
RPE-54L
Number of Stations:	54
Container Sizes Diameter:	2-4.25″
Max-Fill Range (Fl. Oz.):	67
Filler Bow Capacity (Gallons):	250
Horsepower Required:	5
Aproximate Floor Area (Sq. Ft.):	65
Container Centers (In.):	4.667
RPE-60
Number of Stations:	60
Container Sizes Diameter:	2-4.25″
Max-Fill Range (Fl. Oz.):	67
Filler Bow Capacity (Gallons):	250
Horsepower Required:	7.5
Aproximate Floor Area (Sq. Ft.):	125
Container Centers (In.):	4.667
RPE-72
Number of Stations:	54
Container Sizes Diameter:	2-3.5″
Max-Fill Range (Fl. Oz.):	27
Filler Bow Capacity (Gallons):	300
Horsepower Required:	7.5
Aproximate Floor Area (Sq. Ft.):	125
Container Centers (In.):	4.000
RPE-7G
Number of Stations:	7
Container Sizes Diameter:	4-7″
Max-Fill Range (Fl. Oz.):	160
Filler Bow Capacity (Gallons):	25
Horsepower Required:	1.5
Aproximate Floor Area (Sq. Ft.):	21
Container Centers (In.):	12.56
RPE-14G
Number of Stations:	14
Container Sizes Diameter:	4-7″
Max-Fill Range (Fl. Oz.):	180
Filler Bow Capacity (Gallons):	80
Horsepower Required:	3
Aproximate Floor Area (Sq. Ft.):	30
Container Centers (In.):	10.265
RPE-18G
Number of Stations:	18
Container Sizes Diameter:	2-7″
Max-Fill Range (Fl. Oz.):	160
Filler Bow Capacity (Gallons):	208
Horsepower Required:	3
Aproximate Floor Area (Sq. Ft.):	45
Container Centers (In.):	10.470
RPE-27G
Number of Stations:	27
Container Sizes Diameter:	2-4.25″
Max-Fill Range (Fl. Oz.):	32-170
Filler Bow Capacity (Gallons):	230
Horsepower Required:	5
Aproximate Floor Area (Sq. Ft.):	65
Container Centers (In.):	9.335
RPE-36G
Number of Stations:	36
Container Sizes Diameter:	2-4.25″
Max-Fill Range (Fl. Oz.):	32-170
Filler Bow Capacity (Gallons):	250
Horsepower Required:	5
Aproximate Floor Area (Sq. Ft.):	140
Container Centers (In.):	8.000
